Idea For
|
Hotels, Restaurants |
|
|
Advertising and Information engagement |
|
|
Transport, Shopping and sports Locations |
|
|
Public Service Centers |
|
|
Screen: |
|
|
Panel Size: |
49” |
|
Resolution |
1920*1080 |
|
Contrast Ratio |
1100:1 |
|
Color Resolution |
16.2M |
|
Brightness |
450cd/㎡ |
|
Response Time |
≤12ms |
|
Touch: |
|
|
Touch Tech |
Infra Red/ capacitive (Optional) |
|
Light Transmission |
90%~92% |
|
Response Time |
≤16ms |
|
Touch Activation Force |
≤100g (adjust allowed) |
|
Durability |
Scratch-free; ≥50,000,000 touches (single-point) |
|
Surface Hardness |
Mohs’ hardness rating of 7 |
|
Controller Interface |
USB and RS232 |
|
Optional Components: |
|
|
Wireless |
802.11 b/g/n Wi-Fi and antenna, 4G modem |
|
Thermo printer |
80MM priner SID3250K |
|
IC card sensor |
1443A/1443B |
|
Mechanical: |
|
|
Housing |
1.5mm cold rolled steel+Acrylic cover |
|
Color |
Silver/ Black/ White/ Customizable colors |
|
Fan |
2 x 12V fans |
|
Audio | Speakers |
2 x 10W Speakers, 1 x 30W Amplifier |
|
Ports | Slots |
Power input | Power switch | PC switch | USB | LAN |
|
Power Consumption |
70W～100W |
|
Power Supply |
110–240 AC power |
|
Working Enviro |
Temperature: +5°C ~ +50°C | Humidity: 0% ~ 80% |
|
Weight (without base) |
44KG |
|
Packing Method |
Export wooden box+export carton box+4cm foamy. |
Feature:
1. Smooth Touch Gestures
Perform smoother touch gestures with our specially treated glass which lowers the surface tension and friction of the touch surface. It’s also more scratch resistant and durable than ever. Making it ideal for commercial use.
2. Portrait/Landscape Orientation
The touch screen can be installed in portrait as well as landscape orientation.
3. Seamless Rear Connectivity
For seamless kiosk integration you can connect a WiFi aerial, Ethernet cable, a power cable and third party peripherals via USB using the ports on the real of the kiosk. This allows you to organise your cables better and allow for a more clean appearance.
4. Anti Fingerprint Glass
Thanks to a special plasma treatment the tempered glass front is more resistant to oil/ water residue left by fingerprint marks. Unlike other Touch Screens the glass is not etched, vastly improving the optical clarity.
5. Giant tablet styling
Designed to resemble a giant smartphone or tablet. The sleek and sexy look is achieved with a striking aluminum surround and stunning IPX1 rated edge-to-edge glass.
6. 10-point PCAP Touch Technology
Using the most responsive and sensitive commercial touch technology available. Not affected by dust or debris on the screen surface.
7. IPS Panel
With 450 cd/㎡the IPS panel shines brighter than any TV while deliverying superior image quality and color depth at 178°ultral wide viewing angle at all directions.

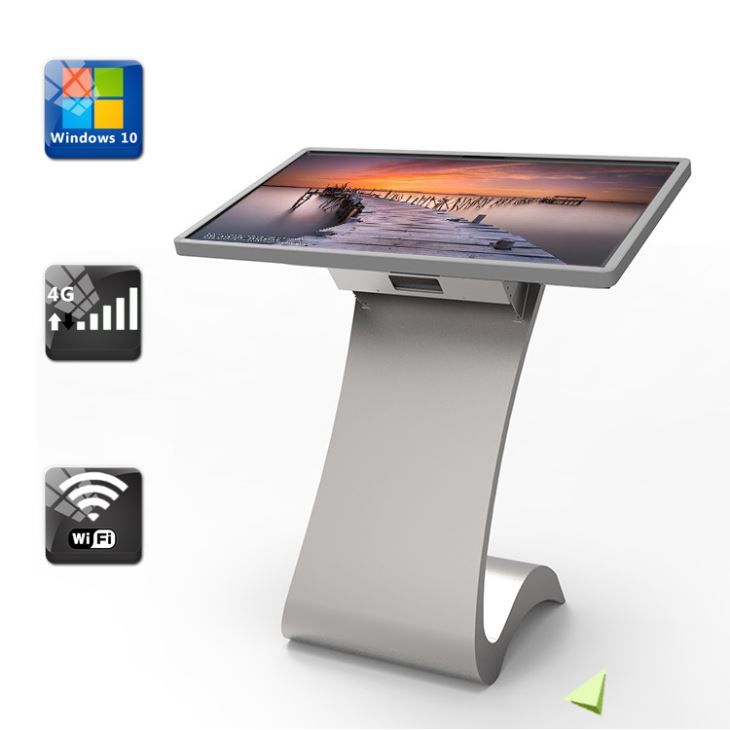

Photos:
FAQ
Q: Common Device failure?
A: Black screen fault, no sound, no working of indicator lamp/ backlight etc.
Solutions: Checking the 220V power is working or not and if the fit together correctly between the power supply cable of the AD display terminal and the external socket.
Q: What's the advavtage of Tonme's AD display terminal?
A: 1. Built-in the video and Hi-Fi system which working auto after powering, the card style remote attached.
2. Products made by Metal structure with painting finishing, no rust.
2. Screen type: Samsung, LG, AU etc brands of panel, A class with 335 standard.
3. Color of products: Black, OEM is welcome.
