55 Inch Indoor LCD Infrared Touch Screen Information Kiosk For Supermarket
Key Features
★ 10 Point IR Touch Screen Technology
★ Full 49″ 1080p Resolution Screen
★ Silver Color Base
★ Windows 7 64-Bit Operating System
★ Onscreen Keyboard/ Mouse
★ Built in WiFi
These Touch kiosks are an all-in-one solution with an integrated PC for Windows or Android operating systems. Only Android is supplied as standard but a Windows licence can be purchased with the screen. However if you wish to connect an external PC or media player there is a secure and discrete internal locker on the rear of the display that allows you to integrate such devices seamlessly. Simply connect your device to the screen via VGA or HDMI (for the video signal) and USB (for the touch functionality). The screen will then serve as your computer’s interactive monitor. You can also extend the connections on your device, such as the USB ports, LAN port, Wi-Fi aerial and power cable to the external ports on the rear of the kiosk.
Built with a commercial grade LCD panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 60,000 hours of continuous use. The 43″ and 55″ models can also be used in portrait orientation.
The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.
Having up to 10 touch points allows for a wider variety of applications than ever before. This kind of functionality allows you to manipulate images, zoom in an out as well as perform many other touch gestures; much like you would with a domestic tablet. It also allows for multiple users interacting with the screen at one time.

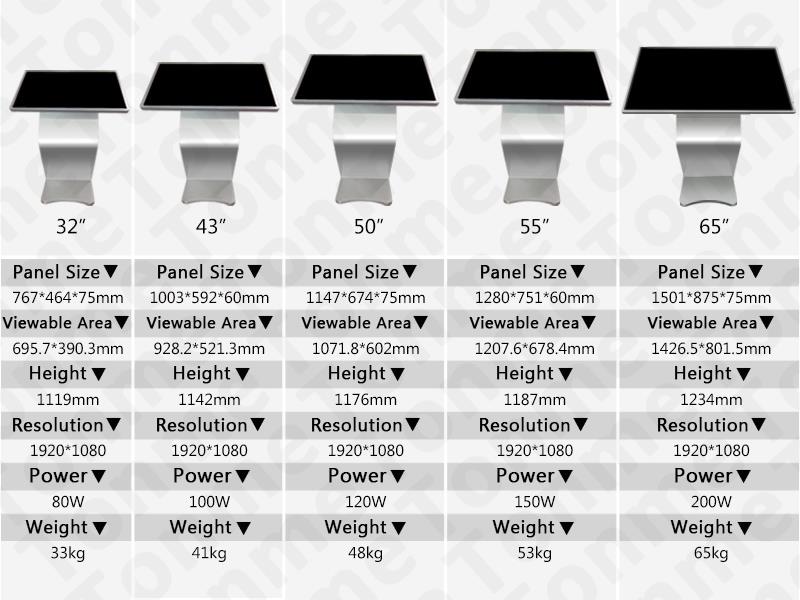

Spec:
Floor Standing Digital Signage Specifiaction-K Series (32"-65") |
Model |
TM01Z32LD |
TM01Z43LD |
TM01Z49LD |
TM01Z55LD |
TM01Z65LD |
Display |
32" |
43" |
49" |
55" |
65" |
Resolution |
1920*1080 |
3840*2160 |
Brightness |
350cd |
400cd |
Contrast Ratio |
1200:1 |
1400:1 |
Coloration |
1.67M |
1.07B |
Response Time |
8ms |
6ms |
8ms |
Viewing Angle |
178°(H/V) |
CPU/Chipset |
6M48, A20, RK3288, J1900, Core I3, Core I5, Core I7 |
Memory |
Android: 1GB, 2GB / Windows: 4GB, 8GB |
Storage |
Android: 8GB / Windows: 128GB |
Wifi |
802.11 b/g/n |
OS |
Android or Windows |
Interface |
Android board: USB*2, RJ45*1, SD*1, HDMI*1 Windows board: USB*4, RJ45*1, HDMI*1, VGA*1 |
Touch |
Capacitive Touch or Infrared Touch |
Speaker |
2PCS Built-in Speakers |
Power Supply |
100-240VAC, 50/60Hz |
Audio Format |
MP3,WMA,WAV,etc |
Video Format |
AVI,MP4,3GP,MVB,WMA,MTV,MOV,MPG,MKV,etc |
Image Format |
JPGE,PNG,BMP,GIF,etc |
System Mangement Mode |
Centralization of management,Group Management, Multi-user Management, Remote Control, Time Switch |
Remote Control Mode |
Remote Auto Time Switch, Remote Auto Update, Remote Monitoring |
System Playing Mode |
Support Loop, Time, Spot Announcement |
Security |
Softdog, Log In Pass Word, Control Pass Word, Authority |
Operation Temperature |
-10-50℃ |
Color |
Black/White/Silver/Customized |
Dimension |
1037.9*758*434 |
1061.2*1010.8*482.8 |
1076.76*1140.9*482.8 |
1097.68*1284.9*482.8 |
1124.46*1504*482.8 |
Accessory |
User's Manual,Power Cord, Lag Spike,Wrench,Key,Wifi Antenna,etc |
Packing |
Wooden Case, Carton, Flight Case, etc |
Photos:
FAQ
Q: Where is your factory located? How can I visit there?
A: Our factory is located in shenzhen, guangdong Province, China, about half hours by metro from baoan airport. All our clients, from home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is priority. Shenzhen people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001, CCC CE, RoHS authentication.
