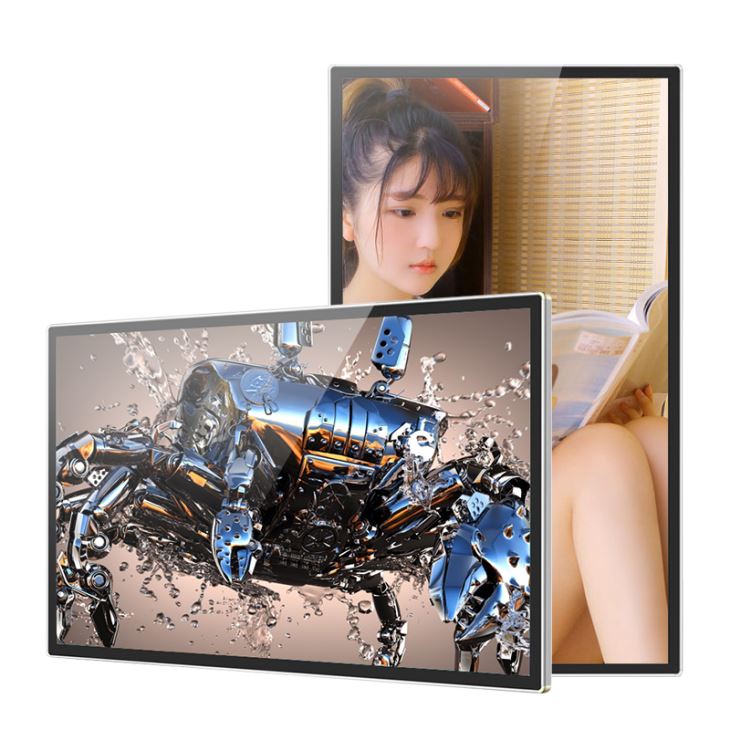

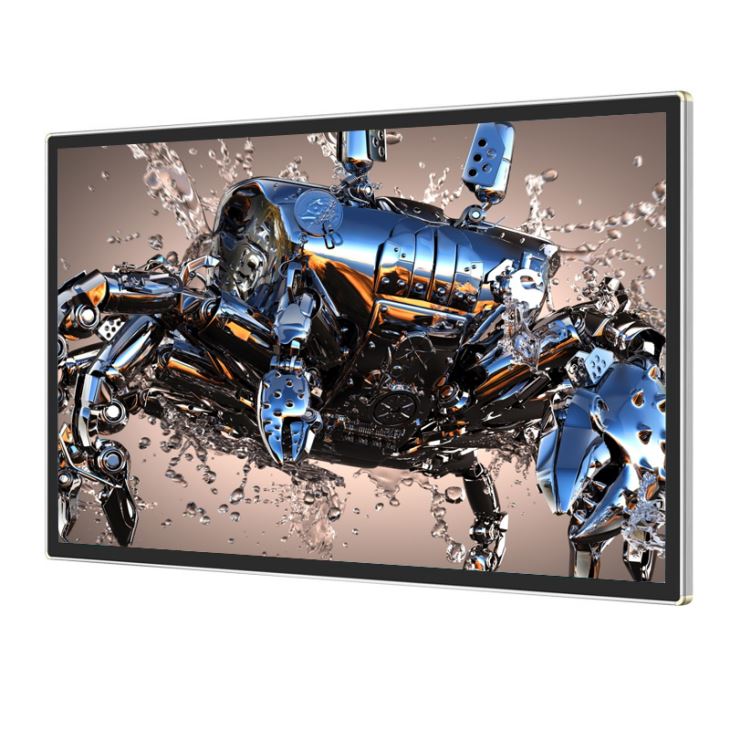

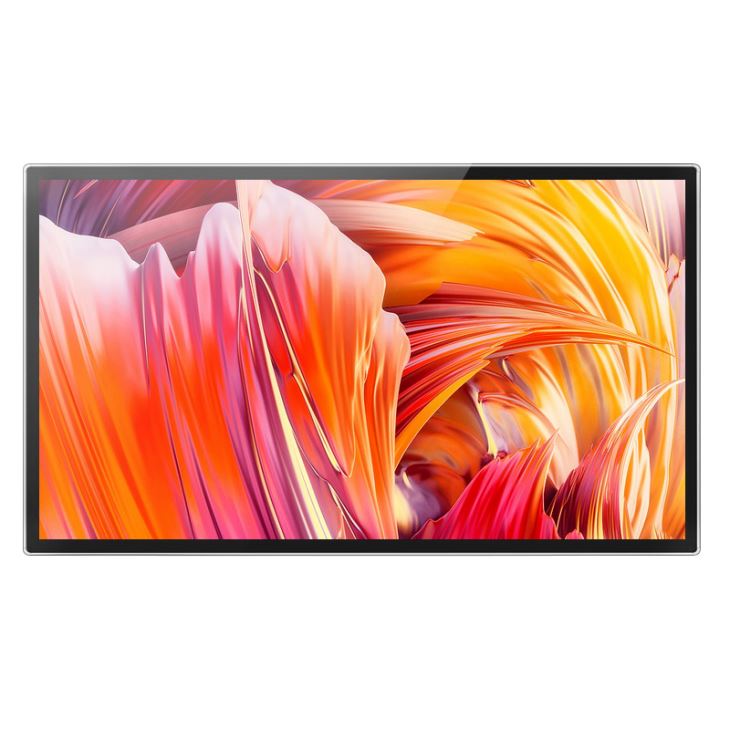

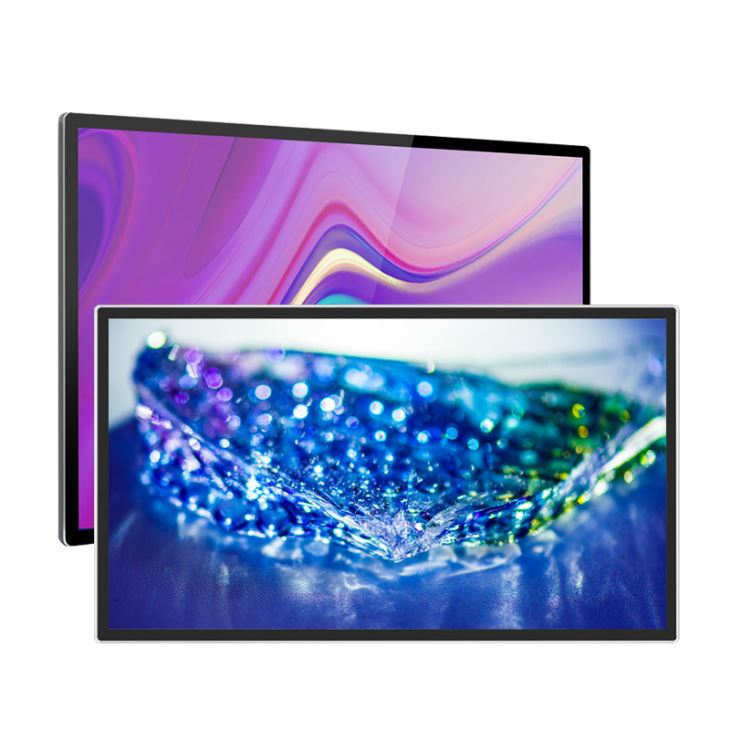

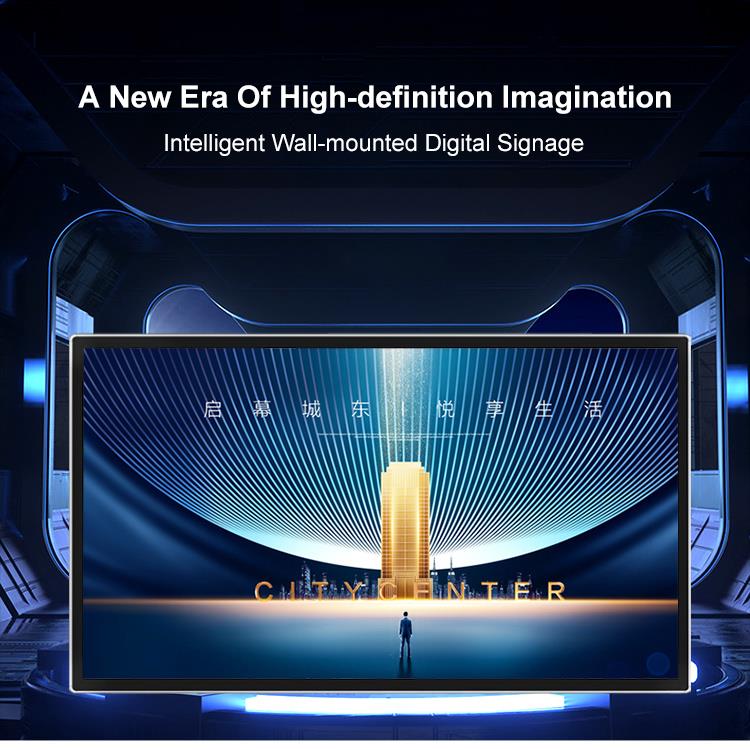

Wall Mounted Digital Signage
Feature:
Built In Wi-Fi
Connect the screen to the CMS wirelessly via the integrated Wi-Fi or by LAN.
Integrated Android Media Player
The integrated Android Media Player allows for super fast updates. If required you can also run third party Digital Signage software via the Android PC board.
Commercial Grade
Designed for use in commercial applications this screen can run 24/7. No external buttons or controls to avoid tampering.
Portrait/Landscape Orientation
The screen can be used in either a landscape or portrait orientation depending on your requirement.
Mounting Solutions
Providing a variety of different ways to mount your screen including flat wall mounts, titled wall mounts, ceiling mounts and floor stands to suit your requirements.
IPS Panel
Superior image quality wit an ultra wide viewing angle of 178°, the screen shines bright thanks to its 500 cd/㎡ brightness rating(more than twice as bright as a common TV). From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate color temperature for lifelike images in both landscape and portrait orientations.
Plug And Play
If there is no internet access available the screen can still be updated thanks to their backup USB update option. Simply package up your Playlist onto a USB stick and insert into the screen. Your templates, schedule and content will now copy and start playing.
Environmentally Friendly Power Timer
Allows for reduced power usage by automatically powering off in hours that the displays are not required. You can set daily On/Off times for your displays.
Advanced Temperature Control
Designed to run 24/7 in constant use the display has an advanced temperature control system to keep it running at the optimum temperature no matter the environment.
Spec:
Wall-mounted Digital Signage Specifiaction-W Series (32"-49") |
Model |
TM01P32BG1 |
TM01P43BG1 |
TM01P49BG1 |
Display |
32" |
43" |
49" |

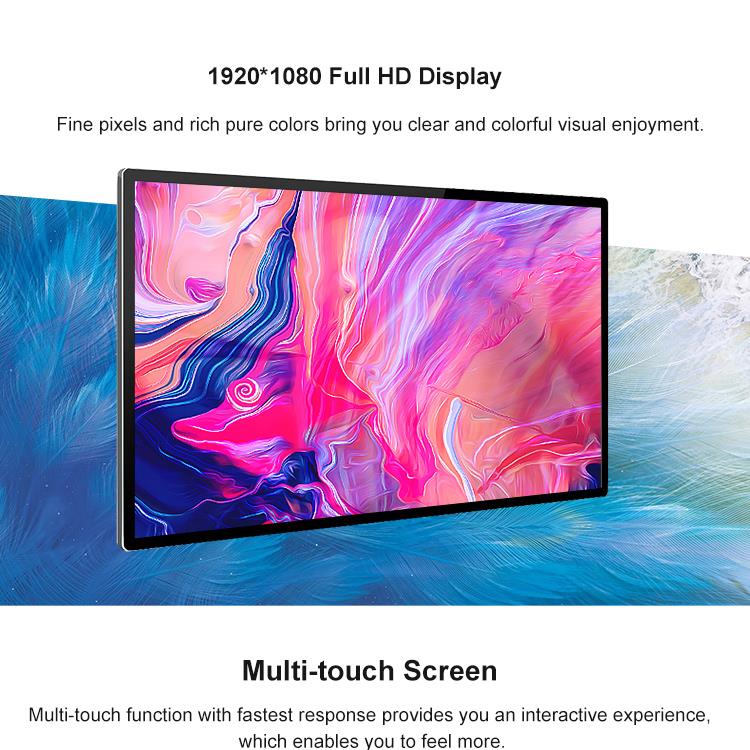

Resolution |
1920*1080 |
1920*1080 |
1920*1080 |
Brightness |
350cd |
Contrast Ratio |
1200:1 |
Coloration |
16.7M |
Response Time |
8ms |
8ms |
6ms |

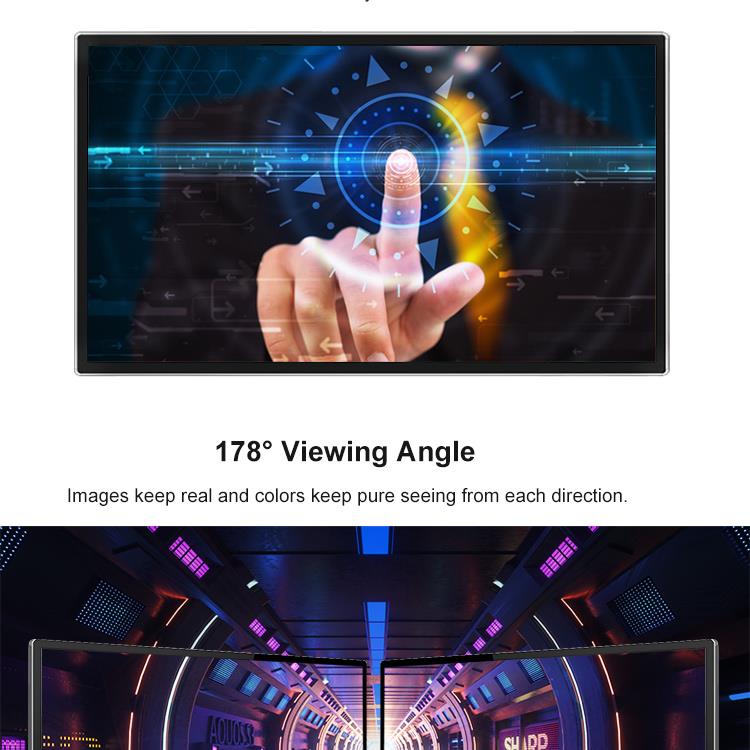

Viewing Angle |
178°(H/V) |
CPU/Chipset |
NT68676, 6M48, A20, RK3368, RK3188, RK3288, J1900, Core I3, Core I5, Core I7 |
Memory |
Android: 1GB, 2GB / Windows: 4GB, 8GB |
Storage |
Android: 8GB / Windows: 128GB |
Wifi |
802.11 b/g/n |
OS |
Android or Windows |

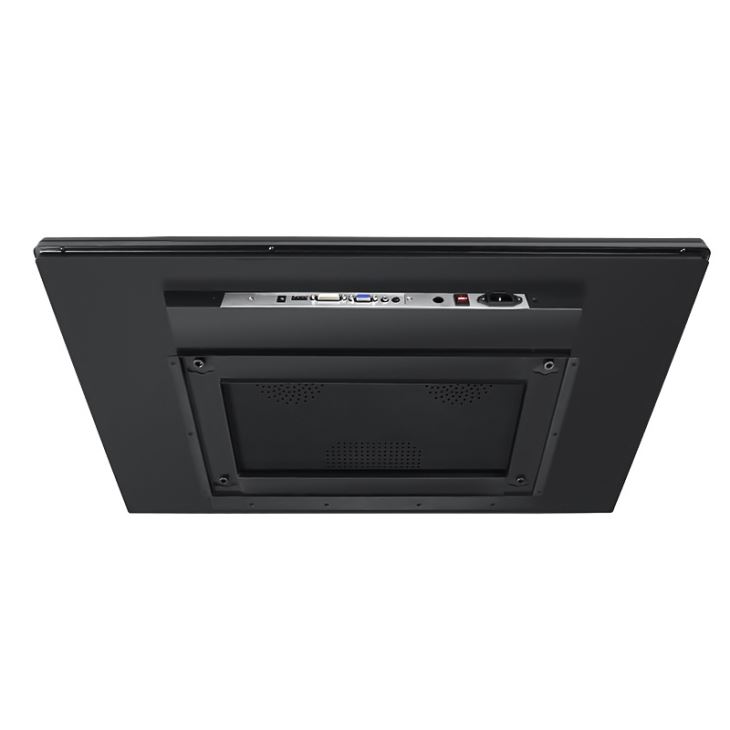

Interface |
Android board: USB*2, RJ45*1, SD*1, HDMI*1 Windows board: USB*4, RJ45*1, HDMI*1, VGA*1 |
Touch |
Capacitive Touch or Infrared Touch |
Speaker |
2PCS Built-in Speakers |
Power Supply |
100-240VAC, 50/60Hz |
Audio Format |
MP3,WMA,WAV,etc |
Video Format |
AVI,MP4,3GP,MVB,WMA,MTV,MOV,MPG,MKV,etc |
Image Format |
JPGE,PNG,BMP,GIF,etc |
System Mangement Mode |
Centralization of management,Group Management, Multi-user Management, Remote Control, Time Switch |
Remote Control Mode |
Remote Auto Time Switch, Remote Auto Update, Remote Monitoring |
System Playing Mode |
Support Loop, Time, Spot Announcement |
Security |
Softdog, Log In Pass Word, Control Pass Word, Authority |
Operation Temperature |
-10-50℃ |
Color |
Black/White/Silver/Customized |
Dimension |
762*460*26 |
993*581*26 |
1158*689*26 |
Accessory |
Power Cord, Wifi Antenna,etc |
Packing |
Wooden Case, Carton,Flight Case,etc |
Photos:
Q: Can we get on time service from you?
A: Fast Response: Our Sales representative will respond your inquires within 12 working hours, for some urgent event within 4 hours.
Q: How about your technical support?
A: Our engineers team has more than 10-year experiences in self service ticket kiosk industry, we always provide our clients suitable solution according to their requirements.
Q: Dow you provide the software development service?
A: We provide FREE SDK for all components to support software development and we can provide the online training or remote control service for troubleshooting.
